CHASE ELEMENT Race Bmx 2026

Chase has been pushing the boundaries with his complete bikes for 11 years and the latest edition of the Element, Element 10, is the best build he has ever offered.

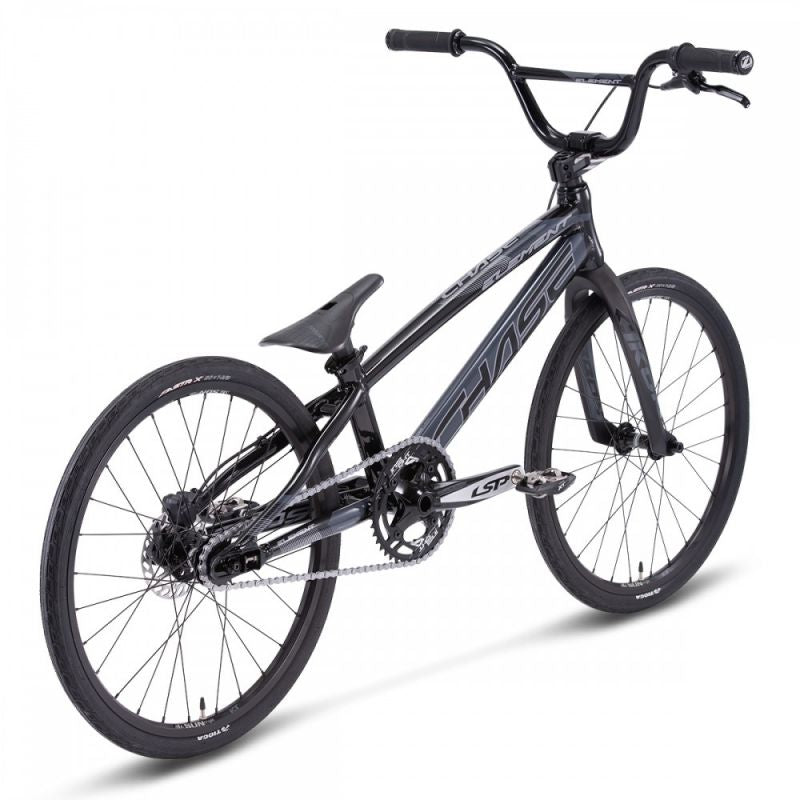

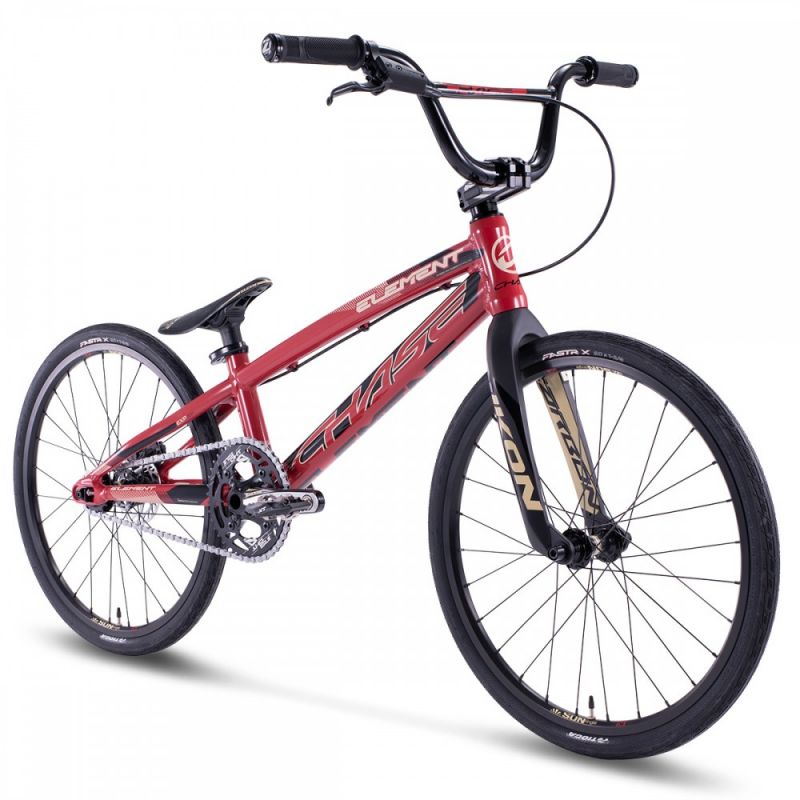

expert xl

FRAME: Chase Element Expert 20" Top tube, Hydroformed 7005-T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm drop out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 45mm
HANDLEBAR: Chase Element 31.8mm 5.75"
CHAINRING: Insight 42T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 165mm, Press Fit BB86
HUBS : Chase Element M6 Bolts, 28H Front, Chase Element M6 Cassette ISO Hub 28H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringlé ICI-1 Rims 20×1-3/8", 28H, No Brake Surface
TIRES: Tioga Fastr X 20×1-3/8" Front & Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin pads), 120mm disc rotor
SEAT: Chase Aero seat post & clamp / Elevn PC Pivotal seat
PEDALS: Nylon platform. Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 4' 7.5" - 5' 0.6" / 1m41 - 1m54
WEIGHT: 8.2 Kg with pedals

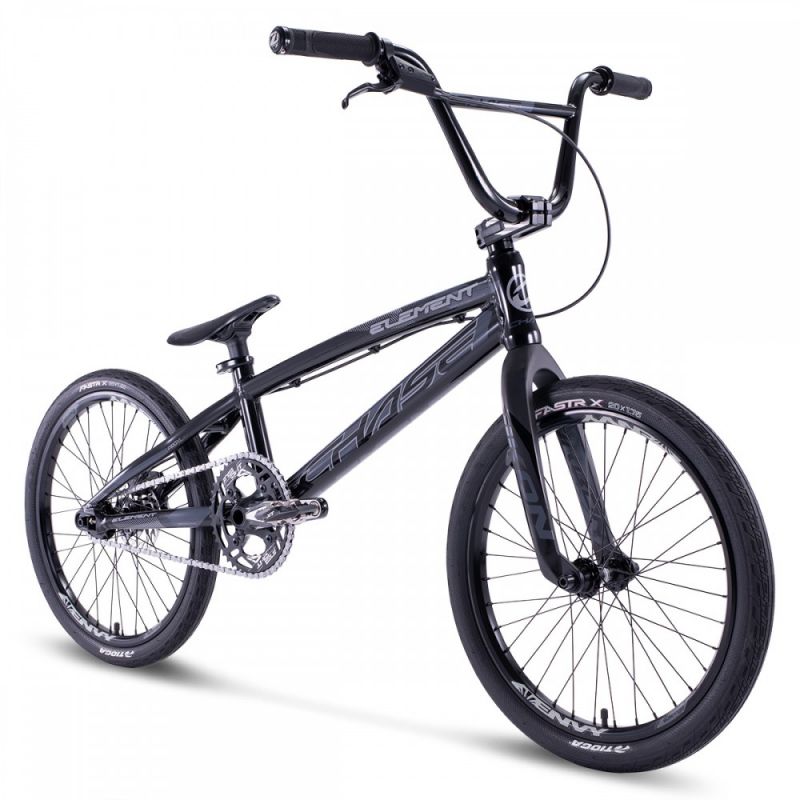

pro xl

FRAME: Chase Element Pro XL 21" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 53mm
HANDLEBAR: Chase Element 31.8mm 8.0"
CHAINRING: Insight 44T 4 Bolts BCD 104mm
CRANKSET : Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringlé Envy Rims 20×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 20×1.75" Front & 20×1.60" Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS: Nylon Platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 1m64 - 1m78
WEIGHT: 9.45Kg with pedals

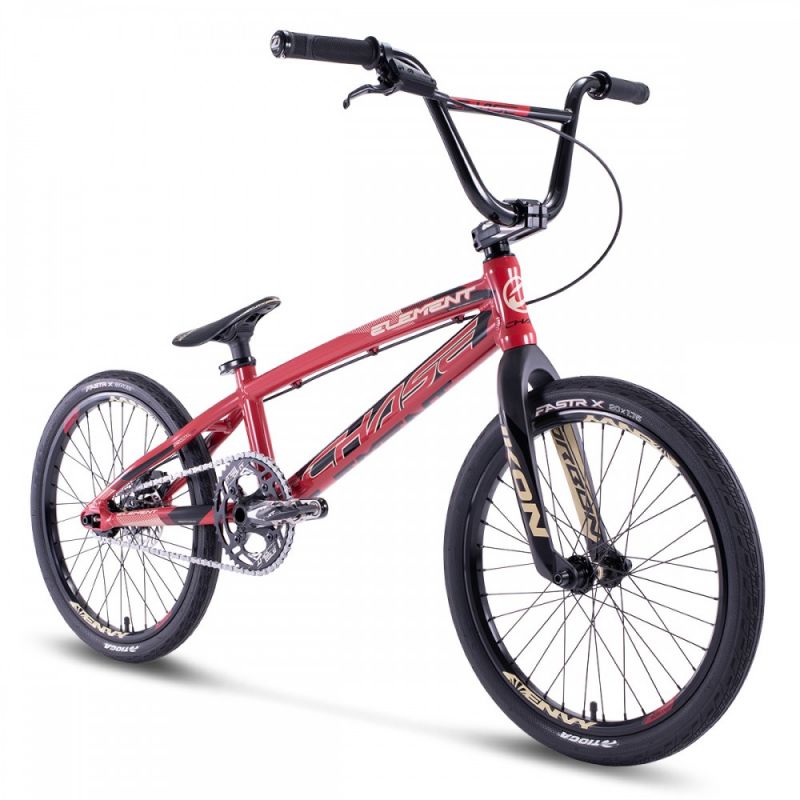

pro 2xl

FRAME: Chase Element Pro XXL 21.5" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 53mm
HANDLEBAR: Chase Element 31.8mm 8.5"
CHAINRING: Insight 44T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringlé Envy Rims 20×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 20×1.75" Front & 20×1.60" Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS: Nylon platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 1m75 - 1m87
WEIGHT: 9.55Kg with pedals

pro 3xl

FRAME: Chase Element Pro XXXL 22" Top tube, Hydroformed 7005 T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm Drop Out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 53mm
HANDLEBAR: Chase Element 31.8mm 8.5"
CHAINRING: Insight 44T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 180mm, Press Fit BB86
HUBS: Chase Element 3/8" Bolts, 36H Front, Chase Element 3/8" Cassette ISO Hub 36H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringlé Envy Rims 20×1.75", 36H, No Brake Surface
TIRES: Tioga Fastr X 20×1.75" Front & 20×1.60" Rear
BRAKES: Tektro Hydraulic lever and caliper (Resin Pads), 120mm disc rotor, Lock Disc Adaptor
SEAT: Chase Aero seat post & clamp / ELEVN PC Pivotal seat
PEDALS - Nylon Platform - Pictured with Shimano XT Pedals but this was for photo purposes only.

RECOMMENDED SIZE: 1m86 - 1m95
WEIGHT: 9.65Kg with pedals
