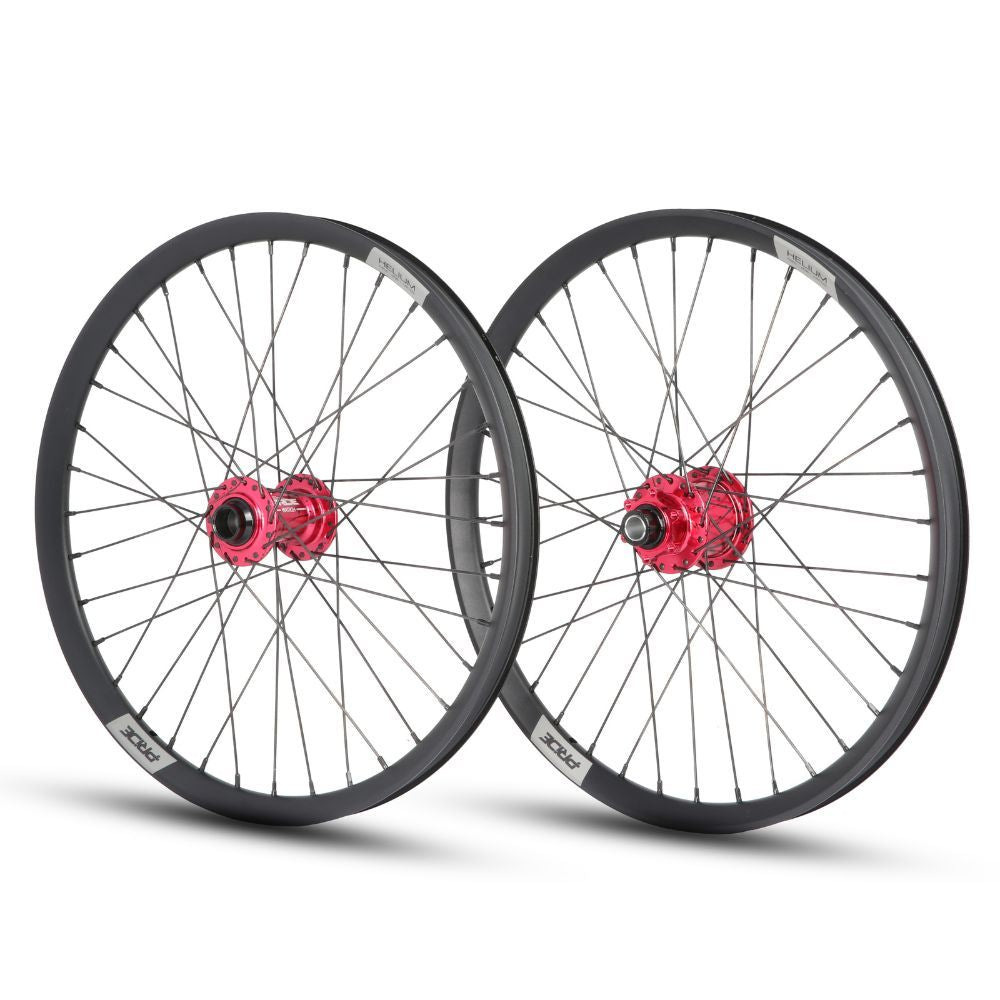

Wheels 20" (406) Pride Helium M24 - Matrix 20/15mm Splash Red/Black

PRIDE HELIUM WHEELS

This pair of Helium wheels combines advanced technology and premium materials to deliver exceptional performance: lightweight construction, quick responsiveness, and rock-solid reliability. A perfect choice for riders seeking top-level performance.

The Pride Helium rim, specially developed for competition, stands out thanks to its lightness, responsiveness, and durability. Weighing under 300g for both Pro and Expert sizes, this aluminum rim ranks among the lightest on the market. Its low profile optimizes reactivity, providing explosive acceleration and excellent handling—ideal for races where every second matters.

It uses the advanced Arcos System® manufacturing process, which ensures maximum precision in the rim’s internal design. This process guarantees complete control over the technical properties of 6069-T6 aluminum, a high-quality material that combines light weight with strength, capable of withstanding the toughest tracks.

The Matrix hubs feature a 12-pawl system with 216 points of engagement, combined with a CNC-machined body made from 6061-T6 aluminum.

NOTES

• The rear wheel is supplied with a lockring and spacers to adjust the chain line.
• Rim tapes are not included.
• 15mm thru-axle not included (frame-specific).

RIM SPECIFICATIONS

• Size / ETRTO: 20" / 24-406
• Material: 6069-T6 aluminum
• Walls: Double
• Spoke count: 36
• Width: 28mm
• Height: 19mm
• V-Brake compatible: No
• Valve type: Presta
• Compatible tire section: 29–65mm (20x1.40" – 20x1.90")

HUB SPECIFICATIONS

• Material: Aluminum
• Front spacing: 20x100mm
• Rear spacing: 15x110mm
• Hole count: 36
• Driver standard: Shimano
• Engagement system: 216 points / 12 pawls
• Disc mount: ISO6
• Front bearings: 6804
• Rear bearings: 18307 (18x30x7mm)
