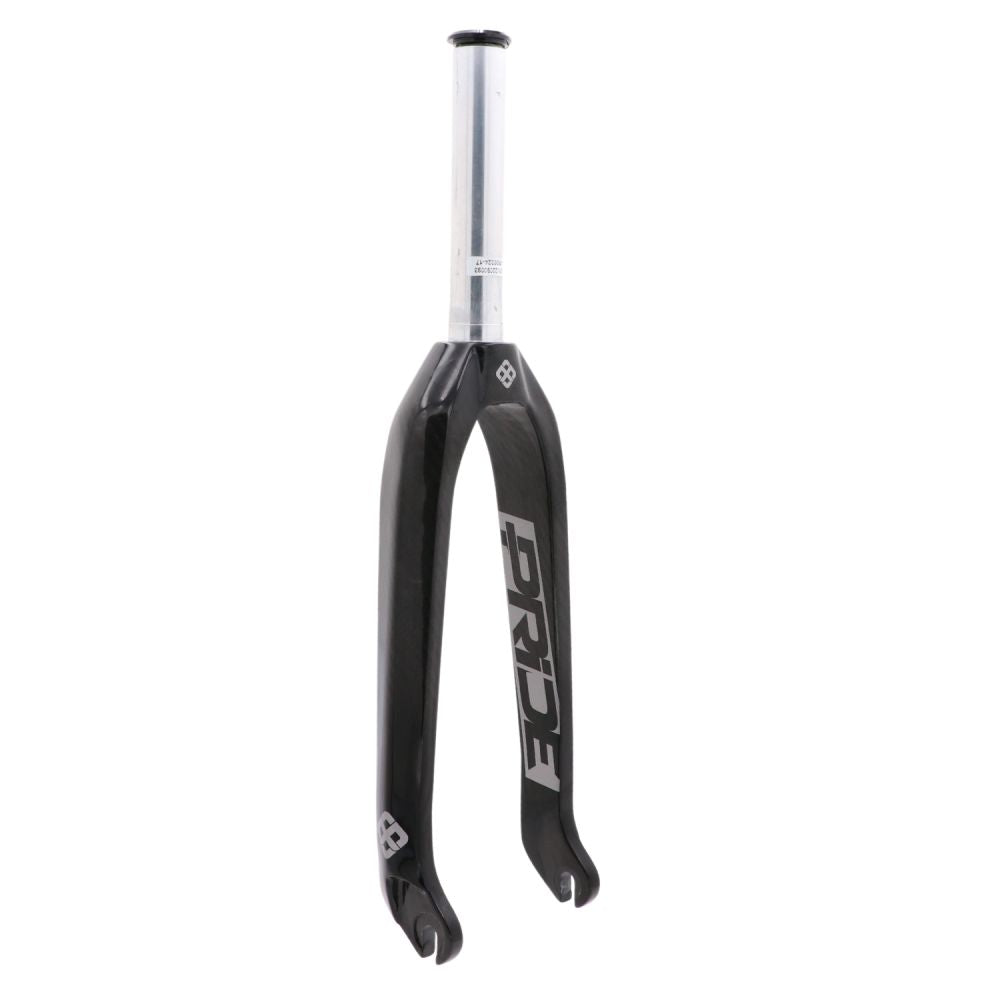

Pride Racing Apex Fork Steerer Tube 1-1/8" 3K Gloss

FOURCHE PRIDE RACING APEX 1-1/8"

Pride Racing unveils a fork with a new design, aimed at young riders practicing BMX Race wanting the technical benefits of a carbon fork.

The Pride Racing Apex fork is built around a structure combining carbon fibers and aluminum. Its Toray® carbon fiber legs ensure a lively and responsive dynamic. Power transfer and riding precision are guaranteed.

The Apex is equipped with a 7075-T6 aluminum steerer with an internal thickness of 3.5mm, providing high resistance to BMX Race stresses.

Note: User weight limit - 45Kg.

FEATURES

• Toray® T700S & T800S Carbon Fiber
• 7075-T6 Aluminum with integrated fork cone
• Fork height: 308mm
• Max tire circumference: 542mm
• Max tire width at 534mm (451): 50mm
• Max tire width at 515mm (406): 55mm
• Hub spacing: 100mm
• Hub axle diameter: 10mm
• Offset: 30mm
• Upper SHIS: 28.6mm
• Lower SHIS: 30mm
• Non-cuttable steerer
• Finish: 3K Gloss
• User weight limit: 45kg
• Weight: 525g

TIGHTENING TORQUES

• IMPORTANT: Always use a torque wrench when assembling the fork. Regular torque checks are recommended.

Complies with EN 16054 Category 2 safety requirements - Tested by an independent French laboratory member of COFRAC
