Inspyre Evo-C race Bmx carbon fork 2027
junior
€1.299,95
Zu Produktinformationen springen
Inspyre Evo-C race Bmx carbon fork 2027
€1.299,95
Inkl. Steuern.
Versandkosten werden beim Checkout berechnet.
Lieferzeit:3-5 Tagen
Details
MX INSPYRE EVO-C 2027
The Bmx Inspyre Evo-C was designed for riders looking for a high-performance, reliable bike ready for competition. It offers an excellent balance of lightness, stiffness, and responsiveness to maximize performance. The Evo-C is intended for experienced riders searching for a competitive bike.
The Evo-C complete bike line comes in 7 sizes ranging from Junior to Pro Cruiser. For each bike size, components are carefully selected to best suit the rider's morphology and provide maximum support on the track.
This year Inspyre opted for a full custom paint scheme on the frame and fork to harmonize the entire bike and bring a premium aesthetic touch.
The bike is built around the Inspyre Bicycles Evo-C Disk frame, a frame incorporating all the features of a high-end aftermarket frame. Its triple-butted hydroformed 6061-T6 aluminum tubing guarantees an excellent strength-to-weight ratio. Its geometry allows it to be both stable and responsive while offering quick and easy handling. The frame incorporates Inspyre Swell dropouts. In addition to adding stiffness to the rear end, they accommodate the chain tensioning system as well as the Pride Racing disc brake mount. The Evo-C is equipped with premium aftermarket parts. It features a Pride carbon fork and an SD-B85 crankset that delivers performance and lightness. The drivetrain is driven by Forward hubs featuring a 6-pawl engagement system with 150 points of engagement. As for tires, you'll find a Tioga Fastr X front tire to reduce rolling resistance while riding and a Powerblock rear tire for perfect grip—an ultra-high-performance combo delivering efficiency and speed. Braking is provided by a hydraulic brake kit from the renowned brand Shimano.
The Inspyre Evo-C Disk is a race-ready bike worthy of a custom build!
SPECIFICATIONS
- INSPYRE BICYCLES 6061-T6 Aluminum Frame
- PRIDE RACING Apex carbon fork
- SHIMANO disc brake kit
- TIOGA FastrX tire (Front) / TIOGA Powerblock tire (Rear)
- Swell rear dropouts - Integrated chain tensioners
- 100% sealed bearings
- FORWARD Joyride V2 rear hub - 150 points of engagement - 6-pawl system - 100% sealed bearings
- KMC Z-1 chain
SPECIFICATIONS

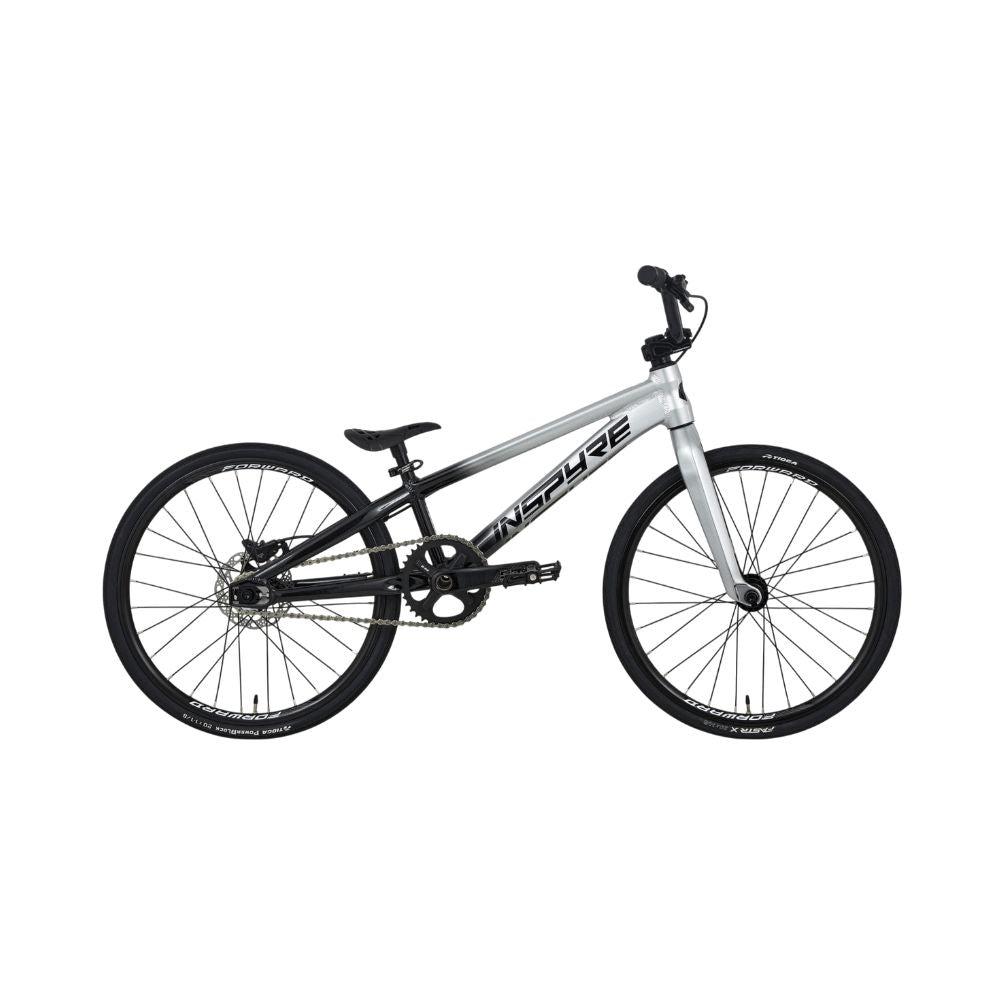

| PARTS | JUNIOR |
|---|---|
| FRAME | Inspyre Evo-C Disk Junior - 18.75’’- Premium Alu 6061-T6 - Hydroformed tubing - Triple butted - 3D Forged Swell dropouts |
| FORK | Pride Racing APEX - Aluminum Steerer 1-1/8’’ - 10mm |
| HEADSET | Semi-integrated - Sealed bearings - ZS44 | ZS44 |
| HANDLEBAR | Inspyre Evo - Aluminum - 22.2mm - 4.25’’ x 22’’ - BS: 7° / US: 2° |
| GRIPS | Forward Lock On - 95mm - Kraton |
| STEM | Forward - Top Load - 6061-T6 Aluminum - 40mm - ⌀ 22.2mm |
| BRAKE LEVER | Shimano BL-MT401 - Right lever |
| BRAKE CALIPER | Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads |
| DISC | Forward Joyride AM disc - ISO 6 - 140mm |
| BOTTOM BRACKET | External bottom bracket - Sealed bearings |
| CRANKSET | SD-B85 - 2-piece - 4-Bolt - 150mm |
| PEDALS | Aluminum Mini 9/16 |
| CHAINRING | Aluminum 4-bolt 38T - BCD 104mm |
| COG | 16T - CrMo - 1/2’’ x 3/32’’ |
| CHAIN | KMC Z-1 - 1/2’’ x 3/32’’ |
| FRONT RIM | Forward Joyride - Aluminum 28H - Double wall |
| REAR RIM | Forward Joyride - Aluminum 28H - Double wall |
| FRONT TIRE | Tioga Fastr X - 20x1-1/8" |
| REAR TIRE | Tioga Powerblock - 20x1-1/8" |
| FRONT HUB | Forward Joyride V2 - Aluminum body 28H - 10mm - 100% Sealed bearings - Female bolts |
| REAR HUB | Forward Joyride V2 Disc - Aluminum Cassette body 28H - 10mm - 100% Sealed bearings - 150 points of engagement - 6-pawl system - Female bolts |
| SPOKES | Stainless 14G |
| SPOKE NIPPLES | Brass 14G |
| SADDLE | Nylon Seat/Seatpost Combo 22.2mm |
| SEAT CLAMP | Forward AM - 25.4mm |
| CHAIN TENSIONERS | Integrated Swell |
| WEIGHT | 7.45kg (without pedals) |
SPECIFICATIONS

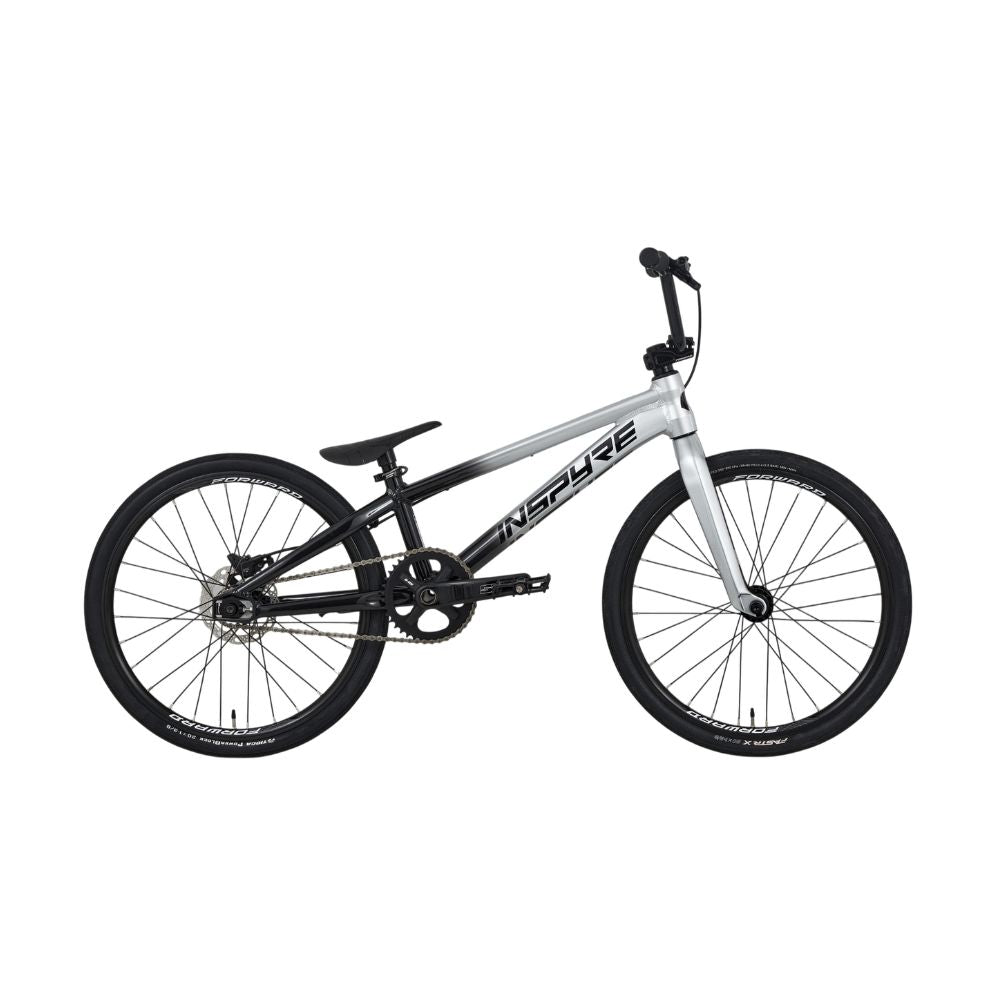

| PARTS | EXPERT |
|---|---|
| FRAME | Inspyre Evo-C Disk Expert 19.5’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts |
| FORK | Pride Racing APEX - Pivot 1-1/8’’ - 10mm |
| HEADSET | Semi Integrated - Sealed bearings - ZS44 | ZS44 |
| HANDLEBAR | Inspyre Evo - Aluminium - 22.2mm - 5.5’’ x 26’’ - BS: 7° / US: 2° |
| GRIPS | Forward Lock On 130mm - Kraton |
| STEM | Forward - Top Load - Aluminum 6061-T6 - 40mm |
| BRAKE LEVER | Shimano BL-MT401 - Right lever - Black |
| BRAKE CALIPER | Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads |
| DISC | Forward 140mm disc |
| BOTTOM BRACKET | FORWARD® external BSA - Sealed bearings |
| CRANKSET | SD B85 - 2-pieces - 4-bolt (104 BCD) - 160mm |
| PEDALS | Aluminum 9/16 |
| SPROCKET | 4-bolt Aluminum 40T |
| CHAIN | KMC® Z-1 - 1/2’’ x 3/32’’ |
| COG | 16T - 1/2’’ x 3/32’’ - Chromoly |
| FRONT RIM | Forward Joyride - Aluminum 28H - Double-wall |
| REAR RIM | Forward Joyride - Aluminum 28H - Double-wall |
| FRONT TIRE | Tioga Fastr X - 20x1-3/8’’ |
| REAR TIRE | Tioga Powerblock - 20x1-3/8’’ |
| FRONT HUB | Forward Joyride V2 - Aluminum 28H - 10mm - 100% Sealed bearings - Female bolts |
| REAR HUB | Forward Joyride V2 Disc - Aluminum Cassette 28H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts |
| SPOKES | Stainless 14G |
| NIPPLES | Brass 14G |
| SEAT | PC Combo 27.2mm |
| SEAT CLAMP | Forward AM 31.8mm |
| TENSIONERS | Integrated Swell Dropouts |
| WEIGHT | 7.60kg (without pedals) |
SPECIFICATIONS
| PARTS | EXPERT XL |
|---|---|
| FRAME | Inspyre Evo-C Disk Expert XL - 20’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts |
| FORK | Pride Racing APEX - Pivot 1-1/8’’ - 10mm |
| HEADSET | Pride Racing - Tapered Integrated - Sealed bearings - IS42 | IS52 |
| HANDLEBAR | Inspyre Evo - 100% Crmo - 22.2mm - 6’.5’ x 26’’ - BS: 7° / US: 2° |
| GRIPS | Forward Lock On 130mm - Kraton |
| STEM | Forward - Top Load - Aluminum 6061-T6 - 50mm |
| BRAKE LEVER | Shimano BL-MT401 - Right lever - Black |
| BRAKE CALIPER | Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads |
| DISC | Forward 140mm disc |
| BOTTOM BRACKET | FORWARD® external BSA - Sealed bearings |
| CRANKSET | SD B85 - 2 pieces - 4-bolt (104 BCD) - 165mm |
| PEDALS | Aluminum 9/16 |
| SPROCKET | 4-bolt Aluminum 40T |
| CHAIN | KMC® Z-1 - 1/2’’ x 3/32’’ |
| COG | 16T - 1/2’’ x 3/32’’ - Chromoly |
| FRONT RIM | Forward Joyride - Aluminum 28H - Double-wall |
| REAR RIM | Forward Joyride - Aluminum 28H - Double-wall |
| FRONT TIRE | Tioga Fastr X - 20x1-3/8’’ |
| REAR TIRE | Tioga Powerblock - 20x1-3/8’’ |
| FRONT HUB | Forward Joyride V2 - Aluminum 28H - 10mm - 100% Sealed bearings - Female bolts |
| REAR HUB | Forward Joyride V2 Disc - Aluminum Cassette 28H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts |
| SPOKES | Stainless 14G |
| NIPPLES | Brass 14G |
| SEAT | PC Combo 27.2mm |
| SEAT CLAMP | Forward AM 31.8mm |
| TENSIONERS | Integrated Swell Dropouts |
| WEIGHT | 7.80kg (without pedals) |
SPECIFICATIONS

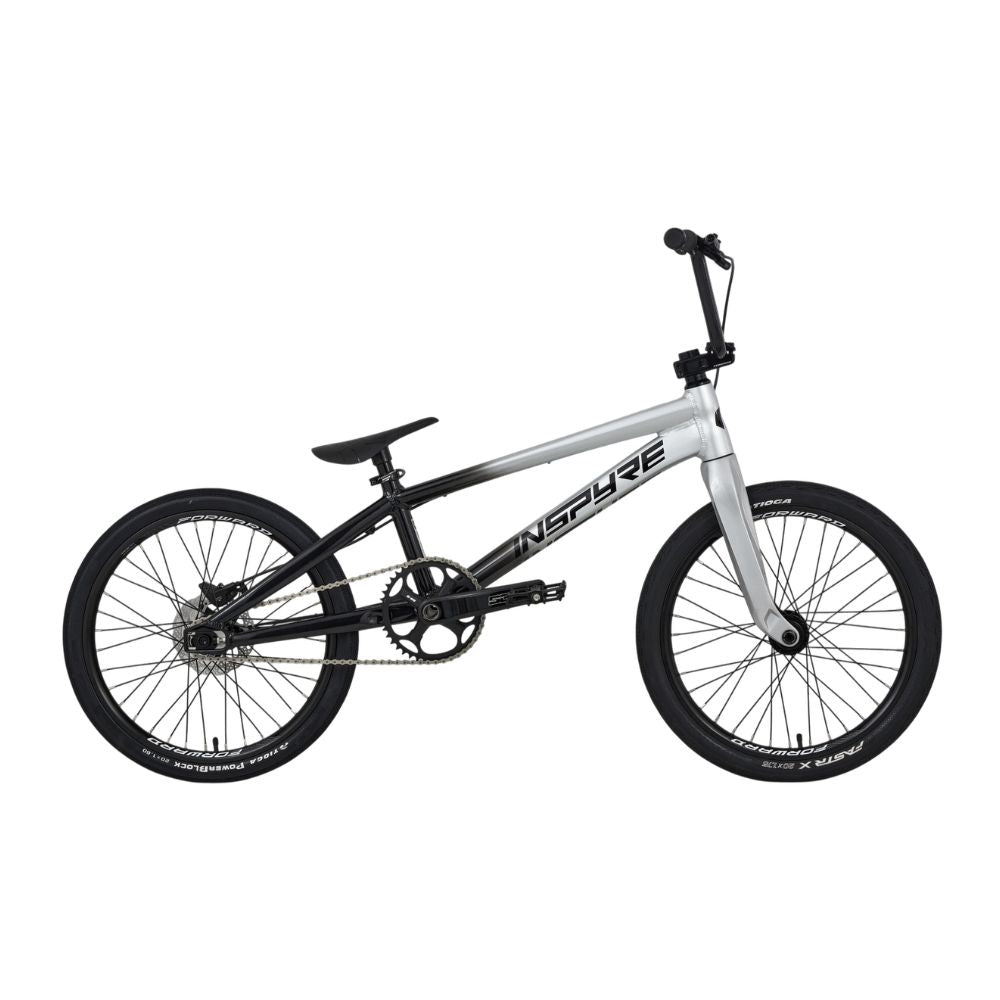

| PARTS | PRO |
|---|---|
| FRAME | Inspyre Evo-C Disk Pro - 20.75" - Premium Alu 6061-T6 - Hydroformed tubes - Triple Butted - Swell forged 3D dropouts |
| FORK | Pride Racing Apex - Carbon - Tapered 1-1/8" / 1.5" alloy steerer - 20mm |
| HEADSET | Pride Racing - Tapered Integrated - Sealed Bearings - IS42 | IS52 |
| HANDLBAR | Inspyre Evo - 100% Crmo - 22.2mm - 7.5" x 26.7" - BS: 7° / US: 1.5" |
| GRIPS | Forward Lock On 130mm - Kraton |
| STEM | Forward - Top Load - Aluminium 6061-T6 - 50mm |
| BRAKE LEVER | Shimano BL-MT401 - Right lever - Black |
| BRAKE CALIPER | Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads |
| DISC | Forward 140mm |
| BOTTOM BRACKET | Forward external BSA - Sealed bearings |
| CRANKSET | SD B85 - 2 pieces - 4-bolt (104 BCD) - 175mm |
| PEDALS | Aluminum 9/16 |
| SPROCKET | 4-bolt Aluminum 42T |
| CHAIN | KMC® Z-1 - 1/2’’ x 3/32’’ |
| COG | 16T - 1/2’’ x 3/32’’ - Chromoly |
| FRONT RIM | Forward Joyride - Aluminum 36H - Double-wall |
| REAR RIM | Forward Joyride - Aluminum 36H - Double-wall |
| FRONT TIRE | Tioga Fastr X - 20x1.75’’ |
| REAR TIRE | Tioga Powerblock - 20x1.60’’ |
| FRONT HUB | Forward Joyride V2 - 36H Aluminum body - 20mm - 100% Sealed bearings - Thru-axle - NEW |
| REAR HUB | Forward Joyride V2 Disc - Aluminum Cassette 36H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts |
| SPOKES | Stainless 14G |
| NIPPLES | Brass 14G |
| SEAT | PC Combo 27.2mm |
| SEAT CLAMP | Forward AM 31.8mm |
| TENSIONERS | Integrated Swell Dropouts |
| WEIGHT | 8.80kg (without pedals) |
SPECIFICATIONS

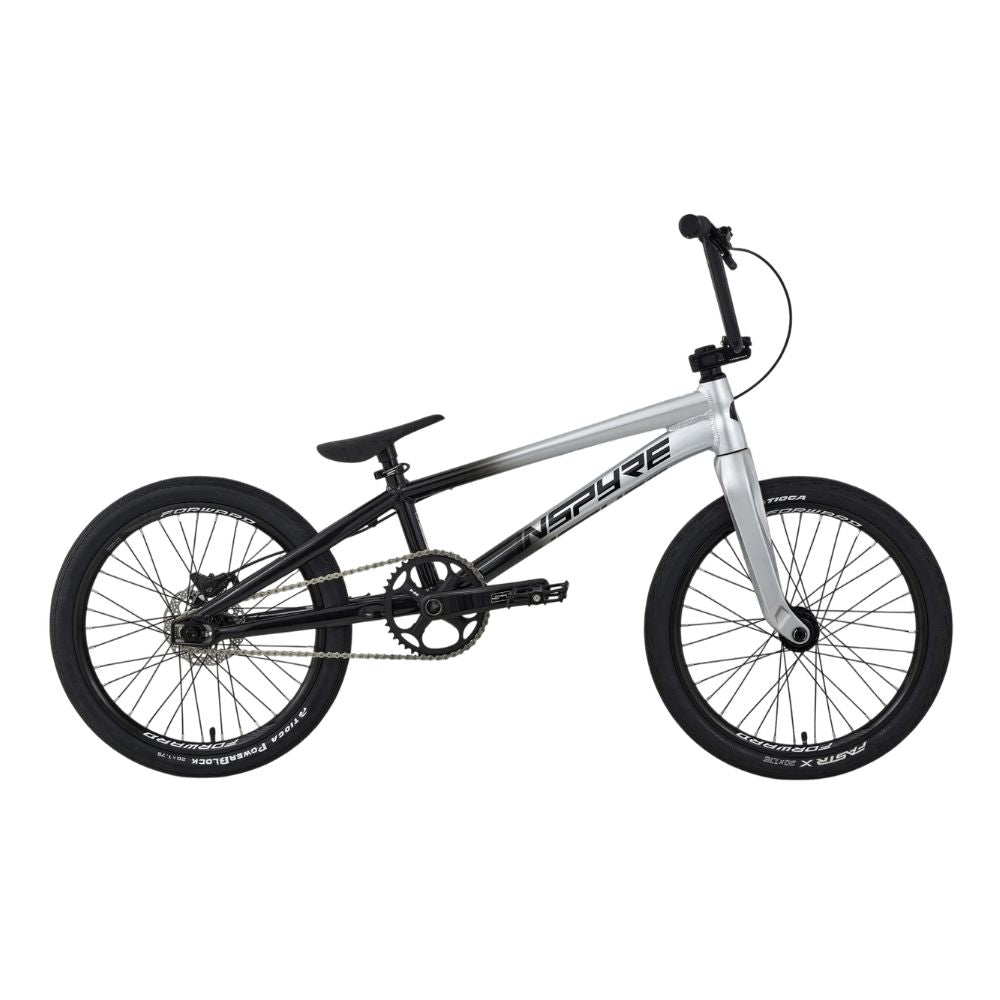

| PARTS | PRO XL |
|---|---|
| FRAME | Inspyre Evo-C Disk Pro XL - 21.25’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts |
| FORK | Pride Racing Apex - Carbon - Tapered 1-1/8" / 1.5" alloy steerer - 20mm |
| HEADSET | Pride Racing - Tapered Integrated - Sealed bearings - IS42 | IS52 |
| HANDLEBAR | Inspyre Evo - 100% Crmo - 22.2mm - 8’’ x 28.5’’ - BS: 7° / US: 1.5° |
| GRIPS | Forward Lock On 130mm - Kraton |
| STEM | Forward - Top Load - Aluminum 6061-T6 - 50mm |
| BRAKE LEVER | Shimano BL-MT401 - Right lever - Black |
| BRAKE CALIPER | Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads |
| DISC | Forward 140mm disc |
| BOTTOM BRACKET | FORWARD® external BSA - Sealed bearings |
| CRANKSET | SD B85 - 2 pieces - 4-bolt (104 BCD) - 175mm |
| PEDALS | Aluminum 9/16 |
| SPROCKET | 4-bolt Aluminum 43T |
| CHAIN | KMC® Z-1 - 1/2’’ x 3/32’’ |
| COG | 16T - 1/2’’ x 3/32’’ - Chromoly |
| FRONT RIM | Forward Joyride - Aluminum 36H - Double-wall |
| REAR RIM | Forward Joyride - Aluminum 36H - Double-wall |
| FRONT TIRE | Tioga Fastr X - 20x1.75’’ |
| REAR TIRE | Tioga Powerblock - 20x1.75’’ |
| FRONT HUB | Forward Joyride V2 - 36H Aluminum body - 20mm - 100% Sealed bearings - Thru-axle - NEW |
| REAR HUB | Forward Joyride V2 Disc - Aluminum Cassette 36H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts |
| SPOKES | Stainless 14G |
| NIPPLES | Brass 14G |
| SEAT | PC Combo 27.2mm |
| SEAT CLAMP | Forward AM 31.8mm |
| TENSIONERS | Integrated Swell Dropouts |
| WEIGHT | 8.96kg (without pedals) |
SPECIFICATIONS
| PARTS | PRO XXL |
|---|---|
| FRAME | Inspyre Evo-C Disk Pro XXL - 21.85’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts |
| FORK | Pride Racing Apex - Carbon - Tapered 1-1/8" / 1.5" alloy steerer - 20mm |
| HEADSET | Pride Racing - Tapered Integrated - Sealed bearings - IS42 | IS52 |
| HANDLEBAR | Inspyre Evo - 100% Crmo - 22.2mm - 8’’ x 28.5’’ - BS: 7° / US:> 1.5° |
| GRIPS | Forward Lock On 130mm - Kraton |
| STEM | Forward - Top Load - Aluminum 6061-T6 - 50mm |
| BRAKE LEVER | Shimano BL-MT401 - Right lever - Black |
| BRAKE CALIPER | Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads |
| DISC | Forward 140mm disc |
| BOTTOM BRACKET | FORWARD® external BSA - Sealed bearings |
| CRANKSET | SD B85 - 2 pieces - 4-bolt (104 BCD) - 175mm |
| PEDALS | Aluminum 9/16 |
| SPROCKET | 4-bolt Aluminum 44T |
| CHAIN | KMC® Z-1 - 1/2’’ x 3/32’’ |
| COG | 16T - 1/2’’ x 3/32’’ - Chromoly |
| FRONT RIM | Forward Joyride - Aluminum 36H - Double-wall |
| REAR RIM | Forward Joyride - Aluminum 36H - Double-wall |
| FRONT TIRE | Tioga Fastr X - 20x1.75’’ |
| REAR TIRE | Tioga Powerblock - 20x1.75’’ |
| FRONT HUB | Forward Joyride V2 - 36H Aluminum body - 20mm - 100% Sealed bearings - Thru-axle - NEW |
| REAR HUB | Forward Joyride Disc - Aluminum Cassette 36H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts |
| SPOKES | Stainless 14G |
| NIPPLES | Brass 14G |
| SEAT | PC Combo 27.2mm |
| SEAT CLAMP | Forward AM 31.8mm |
| TENSIONERS | Integrated Swell Dropouts |
| WEIGHT | 9.15kg (without pedals) |
GPSR-Kontakt:
Hersteller: EU Verantwortliche Person:
INSPYRE BICYCLES INSPYRE BICYCLES
116 chemin du Colombier 116 chemin du Colombier
69590 ST Symphorien Sur Coise 69590 ST Symphorien Sur Coise
France France
Informationen zur Produktsicherheit
Benutzung nur unter Aufsicht vom Erwachsenen
Nur mit
Schutzausrüstung verwenden. Nicht im öffentlichen Strassenverkehr
zugelassen.Reines Sportgerät für BMX race nicht für andere BMX Arten
geeignet!!!!!!
