CHASE bmx RACE SERIES blk 2027
micro
€499,00
Zu Produktinformationen springen
CHASE bmx RACE SERIES blk 2027
€499,00
Inkl. Steuern.
Versandkosten werden beim Checkout berechnet.
Lieferzeit:3-5 Tagen
Details
The New Chase Race series Junior is the perfect entry-level 20″ BMX race bike for the beginning youth racers. Made with an aluminum frame and integrated head tube, using the winning race proven geometry from our championship winning brand, Chase BMX, This BMX is a truly certified BMX racing bike. With race inspired graphics, 100% chromoly bars and forks, sealed hubs, double walled rims, and raced tuned parts from great companies like KMC and ARISUN, giving you the best value for your money in a entry-level race bike, from a company that actually races.

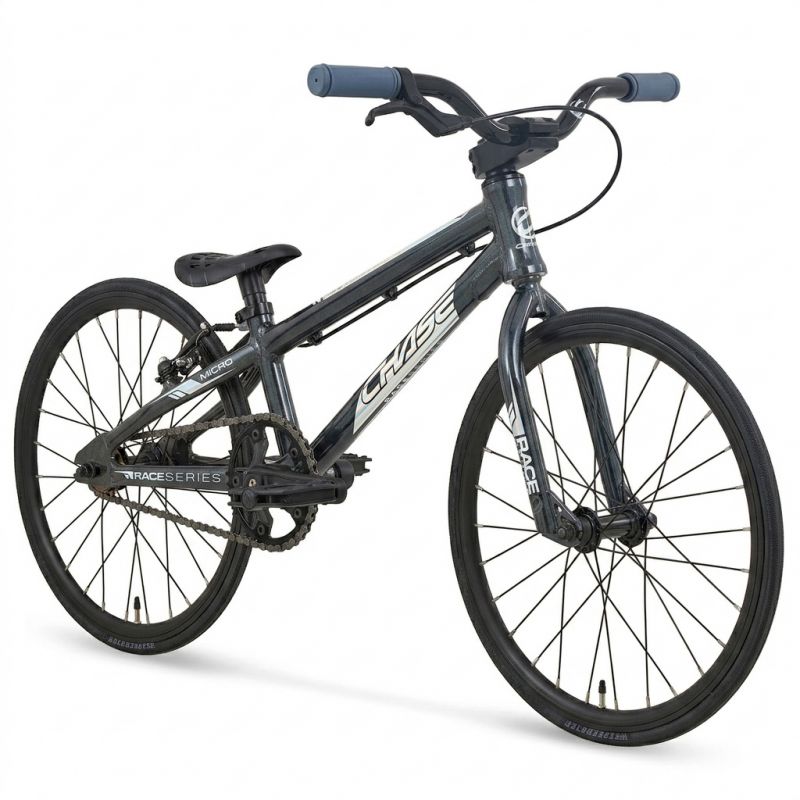

FEATURES : micro
- FRAME: CHASE Race Series Micro 16.25″ Top Tube, 6061-T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
- FORK: CHASE Race Series Micro, Full Cr-mo, 1″ Steer Tube
- STEM: Top Load, 1" Steer Tube, Length 45mm, 6061-T6 Alloy
- HANDLEBAR: CHASE Chromo 2.25″
- HEADSET: Integrated IS 42/42 Reductor 1", Sealed Bearing
- CHAINRING: 36T 5 Bolts BCD 110mm, Steel
- CRANKSET: 3 Pieces Crank 130mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
- HUBS: 28H, Double Contact Seals Bearing, 3/8" Axle/Nuts Front and Rear, 16T cog
- RIMS: Double Wall Alloy 28H 18"x1" Presta Valve Front and Rear
- TIRES: VEE RUBBER Speedster 18″x1″ Front and Rear
- BRAKES: V-Brake 95mm, Mini Reach 2 Fingers lever
- SEAT: Mini Combo Alloy Post/Nylon Seat
RECOMMENDED SIZE: 1m – 1m15
WEIGHT: 6.79 Kg without pedal
SPECIFICATIONS :
|
FRAME
|
Micro 16.25" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals |
|
FORK
|
Full Cr-mo, 1" Steer Tube |
|
HEADSET
|
Integrated IS 42/42 Reductor 1", Sealed Bearing |
|
HANDLEBAR
|
Cr-mo 2.25" Rise, Diameter 22.2mm, 20" Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Single Ply 92mm Flangeless |
|
STEM
|
Top Load, 1" Steer Tube, Diameter 22.2mm, Length 40mm, 6061 T6 Alloy |
|
BB
|
Euro Square 113mm Sealed Bearing |
|
CHAINRING
|
36 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Steel |
|
CRANK
|
3 Pieces Crank 130mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts |
|
PEDAL
|
Platform Nylon 9/16" |
|
CHAIN
|
KMC Z6 1/2"x3/32" |
|
FREEWHEEL
|
Freewheel 16 Tooth 1/2"x3/32" |
|
FRONT HUB
|
28H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
|
REAR HUB
|
28H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
RIMS
|
Double Wall Alloy 28H 18"x1" Presta Valve |
|
TIRES
|
Vee Rubber Speedster 18"x1" Wire Bead |
|
TUBES
|
18''*1" Presta Valve |
|
BRAKE LEVER
|
Mini Reach 2 Fingers Aluminium |
|
BRAKE CALIPER
|
V-Brake 95mm |
|
SADDLE
|
Mini Combo Alloy Post 25.4mm Nylon Seat |
|
SEAT CLAMP
|
28.6mm Alloy 1 Bolt |

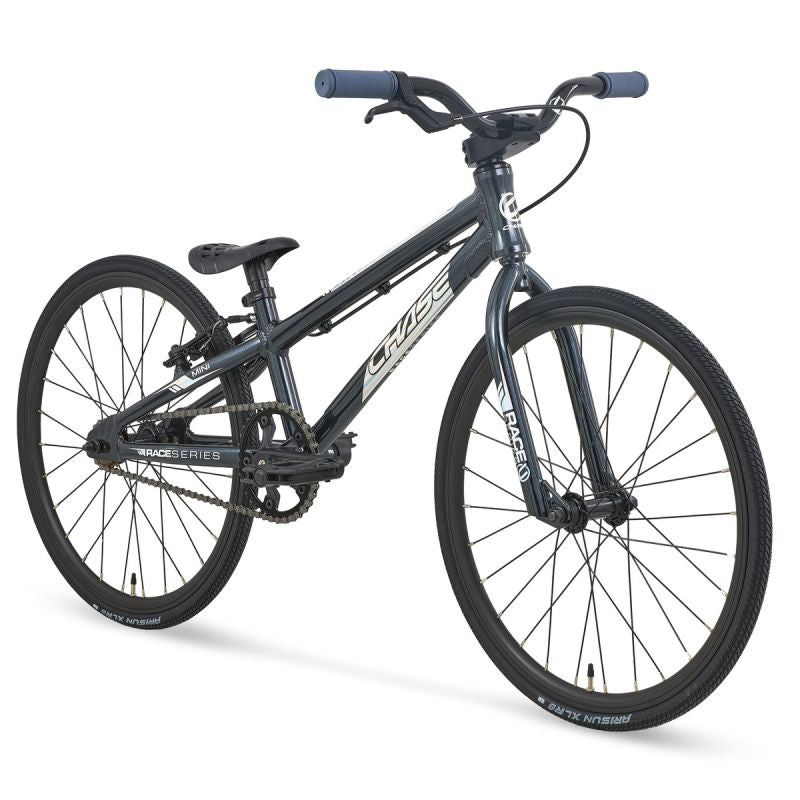

CARACTERÍSTICAS: mini
- FRAME: Mini 17.25" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
- FORK: Full Cr-mo, 1" Steer Tube
- STEM: Top Load, 1" Steer Tube, Length 45mm, 6061-T6 Alloy
- HANDLEBAR: CHASE Chromo 2.25″
- HEADSET: Integrated IS 42/42 Reductor 1", Sealed Bearing
- CHAINRING: 36T 5 Bolts BCD 110mm, Steel
- CRANKSET: 3 Pieces Crank 135mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
- HUBS: 28H, Double Contact Seals Bearing, 3/8" Axle/Nuts, 16T cog
- RIMS: Double Wall Alloy 28H 1-1/8" Presta Valve Front and Rear
- TIRES: Arisun XLR8 1-1/8" Wire Bead Front and Rear
- BRAKES: V-Brake 95mm, Mini Reach 2 Fingers lever
- SEAT: Mini Combo Alloy Post/Nylon Seat
RECOMMENDED SIZE: 1,10 m – 1,25 m
WEIGHT: 7,1 kg (without pedal)
SPECIFICATIONS :
|
FRAME
|
Mini 17.25" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals |
|
FORK
|
Full Cr-mo, 1" Steer Tube |
|
HEADSET
|
Integrated IS 42/42 Reductor 1", Sealed Bearing |
|
HANDLEBAR
|
Cr-mo 2.25" Rise, Diameter 22.2mm, 20" Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Single Ply 92mm Flangeless |
|
STEM
|
Top Load, 1" Steer Tube, Diameter 22.2mm, Length 45mm, 6061 T6 Alloy |
|
BB
|
Euro Square 113mm Sealed Bearing |
|
CHAINRING
|
36 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Steel |
|
CRANK
|
3 Pieces Crank 135mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts |
|
PEDAL
|
Platform Nylon 9/16" |
|
CHAIN
|
KMC Z6 1/2"x3/32" |
|
FREEWHEEL
|
Freewheel 16 Tooth 1/2"x3/32" |
|
FRONT HUB
|
28H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
|
REAR HUB
|
28H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
RIMS
|
Double Wall Alloy 28H 1-1/8" Presta Valve |
|
TIRES
|
Arisun XLR8 1-1/8" Wire Bead |
|
TUBES
|
20''*1-1/8" Presta Valve |
|
BRAKE LEVER
|
Mini Reach 2 Fingers Aluminium |
|
BRAKE CALIPER
|
V-Brake 95mm |
|
SADDLE
|
Mini Combo Alloy Post 25.4mm Nylon Seat |
|
SEAT CLAMP
|
28.6mm Alloy 1 Bolt |

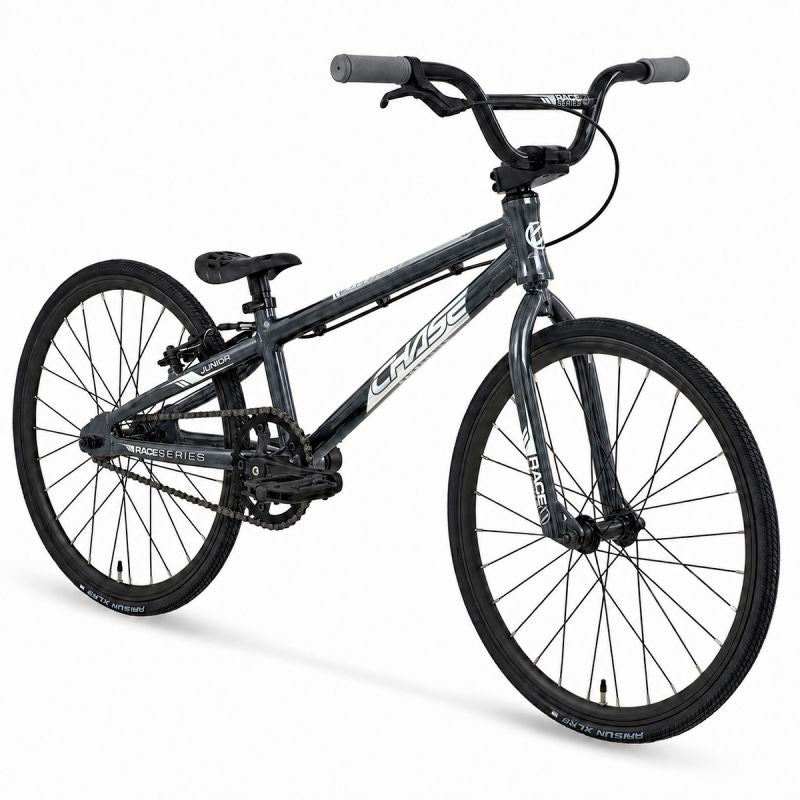

FEATURES: junior
- FRAME: Junior 18.75" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
- FORK: Full Cr-mo, 1" Steer Tube
- STEM: Top Load, 1" Steer Tube, Length 45mm, 6061-T6 Alloy
- HANDLEBAR: CHASE Chromo 4.25″
- HEADSET: Integrated IS 42/42 Reductor 1", Sealed Bearing
- CHAINRING: 38T 5 Bolts BCD 110mm, Steel
- CRANKSET: 3 Pieces Crank 145mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
- HUBS: 28H, Double Contact Seals Bearing, 3/8" Axle/Nuts, 16T cog
- RIMS: Double Wall Alloy 28H 1-1/8" Presta Valve Front and Rear
- TIRES: Arisun XLR8 1-1/8" Wire Bead Front and Rear
- BRAKES: V-Brake 95mm, Junior/Expert 2 Fingers lever
- SEAT: Mini Combo Alloy Post/Nylon Seat
RECOMMENDED SIZE: 1.22 m – 1.35 m
WEIGHT: 7.7 kg (without pedal)
SPECIFICATIONS :
|
FRAME
|
Junior 18.75" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals |
|
FORK
|
Full Cr-mo, 1" Steer Tube |
|
HEADSET
|
Integrated IS 42/42 Reductor 1", Sealed Bearing |
|
HANDLEBAR
|
Cr-mo 4.25" Rise, Diameter 22.2mm, 22.75" Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
130mm Soft Single Ply Without Flange |
|
STEM
|
Top Load, 1" Steer Tube, Diameter 22.2mm, Length 45mm, 6061 T6 Alloy |
|
BB
|
Euro Square 113mm Sealed Bearing |
|
CHAINRING
|
38 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Steel Ring |
|
CRANK
|
3 Pieces Crank 145mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts |
|
PEDAL
|
Platform Nylon 9/16" |
|
CHAIN
|
KMC Z6 1/2"x3/32" |
|
FREEWHEEL
|
16 Tooth 1/2"x3/32" |
|
FRONT HUB
|
28H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
|
REAR HUB
|
28H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
RIMS
|
Double Wall Alloy 28H 1-1/8" Presta Valve |
|
TIRES
|
Arisun XLR8 1-1/8" Wire Bead |
|
TUBES
|
20''*1-1/8" Presta Valve |
|
BRAKE LEVER
|
Junior/Expert 2 Fingers |
|
BRAKE CALIPER
|
V-Brake 95mm |
|
SADDLE
|
Mini Combo Alloy Post 25.4mm Nylon Seat |
|
SEAT CLAMP
|
28.6mm Alloy 1 Bolt |

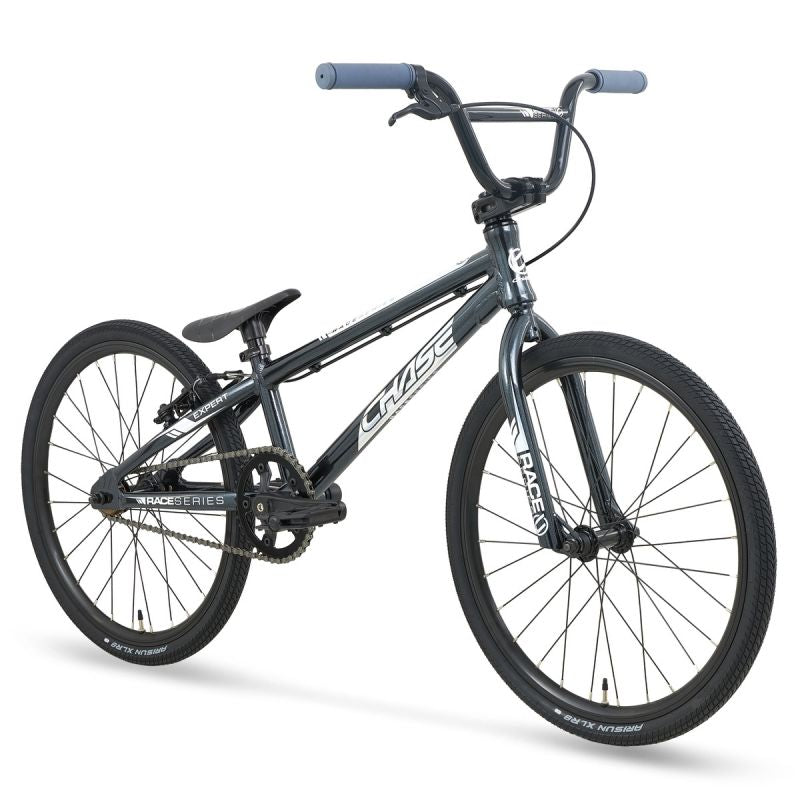

FEATURES:
- FRAME: Expert 19.75" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
- FORK: Full Cr-mo, 1-1/8" Steer Tube
- STEM: Top Load, 1-1/8" Steer Tube, Length 53mm, 6061-T6 Alloy
- HANDLEBAR: CHASE Chromo 5.75″
- HEADSET: Integrated IS 42/42 1-1/8", Sealed Bearing
- CHAINRING: 39T 5 Bolts BCD 110mm, Steel
- CRANKSET: 3 Pieces Crank 155mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
- HUBS: 28H, Double Contact Seals Bearing, 3/8" Axle/Nuts, 16T cog
- RIMS: Double Wall Alloy 28H 1-3/8" Presta Valve Front and Rear
- TIRES: Arisun XLR8 1-3/8" Wire Bead Front and Rear
- BRAKES: V-Brake 95mm, Junior/Expert 2 Fingers lever
- SEAT: Expert/Pro Combo Alloy Post/Nylon Seat
RECOMMENDED SIZE: 1.32 m – 1.46 m
WEIGHT: 8.6 kg (without pedal)
SPECIFICATIONS :expert
|
FRAME
|
Expert 19.75" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals |
|
FORK
|
Full Cr-mo, 1-1/8" Steer Tube |
|
HEADSET
|
Integrated IS 42/42 1-1/8", Sealed Bearing |
|
HANDLEBAR
|
Cr-mo 5.75" Rise, Diameter 22.2mm, 24.5" Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
130mm Soft Single Ply Without Flange |
|
STEM
|
Top Load, 1-1/8" Steer Tube, Diameter 22.2mm, Length 53mm, 6061 T6 Alloy |
|
BB
|
Euro Square 113mm Sealed Bearing |
|
CHAINRING
|
39 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Steel Ring |
|
CRANK
|
3 Pieces Crank 155mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts |
|
PEDAL
|
Platform Nylon 9/16" |
|
CHAIN
|
KMC Z6 1/2"x3/32" |
|
FREEWHEEL
|
16 Tooth 1/2"x3/32" |
|
FRONT HUB
|
28H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
|
REAR HUB
|
28H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
|
SPOKES
|
14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
RIMS
|
Double Wall Alloy 28H 1-3/8" Presta Valve |
|
TIRES
|
Arisun XLR8 1-3/8" Wire Bead |
|
TUBES
|
20''*1-3/8" Presta Valve |
|
BRAKE LEVER
|
Junior/Expert 2 Fingers |
|
BRAKE CALIPER
|
V-Brake 95mm |
|
SADDLE
|
Mini Combo Alloy Post 25.4mm Nylon Seat |
|
SEAT CLAMP
|
28.6mm Alloy 1 Bolt |
GPSR-Kontakt:
Hersteller:
BMX RACING GROUP 20435 GRAMERCY PLACE SUITE 103 TORRANCE CA 90501 USA www.bmxracinggroup.com
EU Verantwortliche Person:
USPROBIKES, C/O NAGRUP – 23 av ST GUILLAN – 31620 CASTELNAU D’ESTRETEFONDS – FRANCE usprobikes@usprobikes.com
Informationen zur Produktsicherheit
Benutzung nur unter Aufsicht vom Erwachsenen
Nur mit
Schutzausrüstung verwenden. Nicht im öffentlichen Strassenverkehr
zugelassen.Reines Sportgerät für BMX race nicht für andere BMX Arten
geeignet!!!!!!
