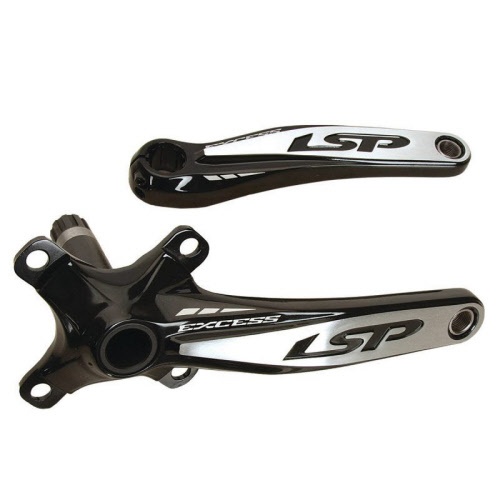

Specially developed for BMX Race, the EXCESS LSP crankset offers improved torque stiffness when pedaling thanks to the use of forged alloy cranks which are stiff but light at the same time. It is equipped with a press-fit, heat-treated Chromoly axle making the whole thing more solid and it is also equipped with Chromoly pedal inserts.
• 2-piece crankset
• Forged aluminum 6061-T6 crank arms
• 24mm SCM435 heat treated chromoly axle
• 4 bolts mount BCD diameter 104mm
• Chromoly pedal inserts
• Chain line: 42mm
• Q-factor: 161mm
• Weight: 764g (180mm)
• Sold without bottom bracket
• Press Fit 86mm bottom bracket with 24mm axle
• Euro BSC/BSA 68/73mm bottom bracket with 24mm axle
LSP CRANK INSTRUCTION GUIDE
NOTE : THE ASSEMBLY OF THE LSP CRANKSET MUST BE DONE BY A CYCLE PROFESSIONAL FOLLOWING THE ASSEMBLY INSTRUCTIONS, FAILURE TO VOID ANY WARRANTY.
