SPECS :
• Carbon frame Toray T700
• Tapered headset 1-1 / 8 '' - 1.5 '' (from pro size)
• headset 1-1 / 8 '' (sizes jr / exp / expXL)
• BB86 (from pro size)
• Euro 68/73 (sizes jr / exp / expXL)
• Dropouts 10 / 15mm
• Internal cable
SIZES:
• 6 sizes: Junior, Expert, Expert XL, Pro, Pro XL, Pro XXL

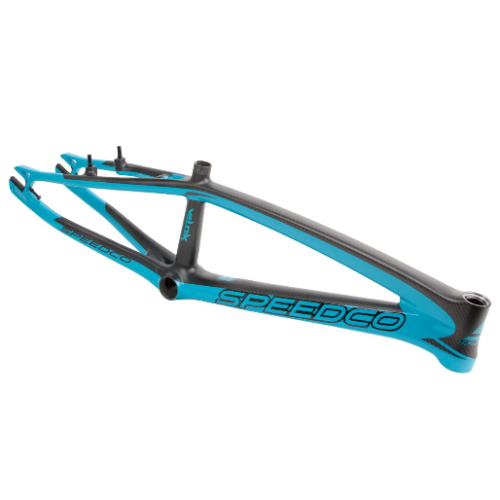

The Speedco Velox frame has a BB86 standard bottom bracket. With its internal diameter of 41mm, it is compatible with the Press Fit 24 boxes. The only difference is the width which is greater on a BB86 and which brings more rigidity. Speedco understood that stiffness was the key to getting out of the grid first and for accelerations at the end of the turn, which is why the downtube as well as the bases of the frames are as wide as the case.
GEOMETRIES:
| Sizes |
TT |
CS min |
HA |
OD HS |
SA |
SP |
BB |
Weight |
| Junior |
18,5″ |
13,5″ |
73° |
intégré OD 1-1/8″ |
70° |
22,2 mm |
10,6″ |
NC |
| Expert |
19,25″ |
14″ |
73° |
intégré OD 1-1/8″ |
70° |
22,2 mm |
11″ |
NC |
| Expert XL |
20″ |
14″ |
73° |
intégré OD 1-1/8″ |
70° |
22,2 mm |
11″ |
NC |
| Pro |
20,5″ |
14,25″ |
74° |
tapered OD
1-1/8″ 1,5″ |
72° |
27,2 mm |
11,5″ |
1,18 Kg |
| Pro XL |
21″ |
14,25″ |
74° |
tapered OD
1-1/8″ 1,5″ |
72° |
27,2 mm |
11,5″ |
1,2 Kg |
| Pro XXL |
21,75″ |
14,25″ |
74° |
tapered OD
1-1/8″ 1,5″ |
72° |
27,2 mm |
11,5″ |
1,25 Kg |
